AOHAI Hybrid HV 10kW AH-10KTH-G1 3Ph

The AOHAI AH-10KTH-G1 is a powerful and future-proof 10 kW three-phase hybrid inverter, specifically designed for larger residential installations, small businesses, and agricultural applications. Thanks to smart storage options, fast backup functionality, and high efficiency, this system is a solid choice in a rapidly changing energy market.

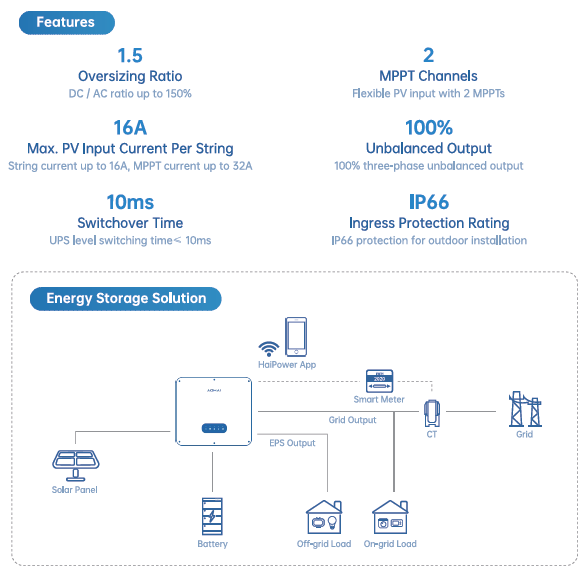

Key Features:

Maximum energy utilisation: Thanks to a generous DC/AC ratio of up to 150%, the AH-10KTH-G1 achieves optimum efficiency from solar panels, even with oversized panels or limited irradiation.

Smart energy control: With built-in EMS (Energy Management System), peak shaving support, and flexible charge/discharge settings, energy balance is automatically adjusted based on consumption, grid status, and storage.

Powerful backup: Switches to backup mode in ≤10 ms during power failure (UPS quality), ideal for locations with critical electrical systems such as heat pumps, workplaces or cooling.

High-quality design: IP66 rated for all-weather use, with passive cooling for quiet operation and minimal maintenance.

Monitoring & Connectivity: Supports real-time monitoring via WiFi or app, with OTA firmware updates for continuous performance and security improvements.

Dual MPPT: Two separate MPP trackers ensure optimal yield on roofs with multiple slopes or shaded areas.

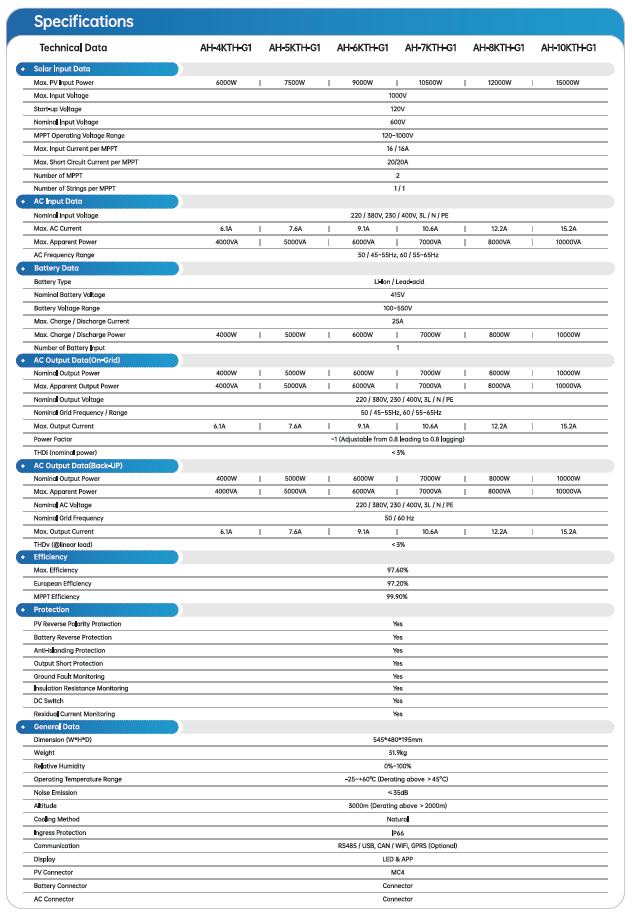

Technical specifications (10 kW model):

n   AC output power: 10,000 W

n   Max. DC input voltage: 1000 V

n   Number of MPPTs: 2

n   Max. input current per MPPT: 16 A

n   Efficiency: Up to 97.6%

n   Backup switching time: ≤10 ms

n   Protection class: IP66

n   Operating temperature: -25°C to 60°C

n   Suitable for indoor and outdoor mounting

Why this inverter?

The AH-10KTH-G1 perfectly addresses the challenges and opportunities in the Dutch market, where grid congestion, energy independence, and scalability are becoming increasingly important.

Ideal for larger installations in grid-constrained areas: Many inverters in this class are either focused on grid injection or require expensive storage expansions. The AH-10KTH-G1 combines both in a single enclosure, making it particularly suitable for larger homes, small and medium-sized businesses, farms, or energy cooperatives.

Competitive advantage over A-brands: While inverters from brands like SMA, SolarEdge, or Fronius often have higher entry costs and license models for battery management, AOHAI offers a complete hybrid solution – including EMS, with no hidden extra costs.

Dynamic energy rates & smart control: The inverter is ready for market developments such as dynamic rates, time-controlled charging, and VPPs (virtual power plants). This makes it particularly attractive for progressive energy users in the Netherlands.

Quiet, safe, and robust: The fanless, dust- and waterproof housing (IP66) makes it suitable for both indoor and outdoor use, with minimal maintenance requirements. Perfect for Dutch building standards.
