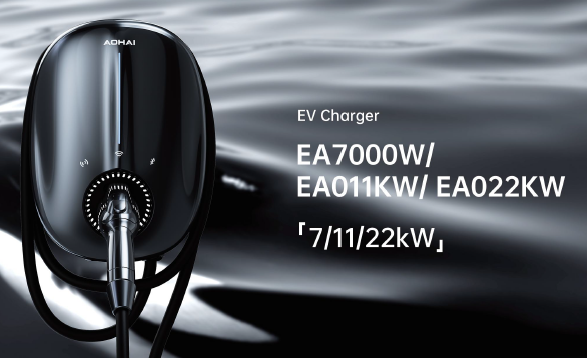

The AOHAI EV Charger 22 kW 3-Phase is a charging station/wallbox designed for situations where three phases of grid power are available. With 22 kW of charging power, it is suitable for fast AC charging of electric vehicles at home (if equipped with a 3-phase connection), in the office, in apartment buildings, or in commercial settings. It offers powerful charging speeds, smart features, and safety.

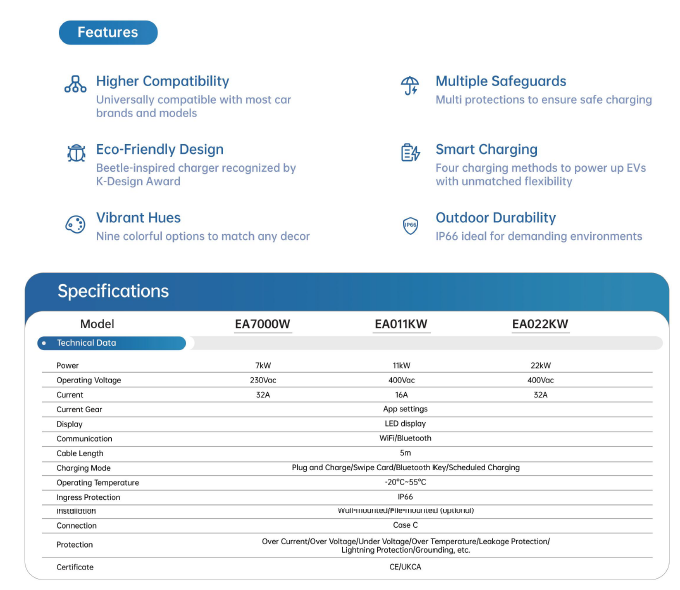

Technical specifications (expected / typical)
Specification
Typical value
Nominal power
22 kW AC (three-phase)
Connection / grid type
3 phases + N + PE (Three-phase AC connection, usually ± 400 V)
Maximum current per phase
32 A (or sometimes 16 A depending on the setting)
Tension
± 400 V AC ± tolerance (often ±10–15 %)
Frequency
50 Hz (sometimes 50/60 Hz compatibility)
Connector / plug
Type 2 plug or socket (depending on version)
Degree of protection
IP rating between IP54 and IP66 (for outdoor use, splash/dust resistant)
Operating temperature range
Approx. –20 °C to +50 °C (or slightly higher depending on brand/environment)
Communication / interface
Possible via WiFi, Ethernet/LAN, Bluetooth; possible OCPP protocol for network management, app control, RFID or card readers for access
Safety features
Overcurrent protection, overvoltage/undervoltage monitoring, residual current devices (RCDs), short-circuit and high-temperature protection, possible ground-fault detection
Mounting type
Wall mounting; column mounting is also possible, depending on the design and application
Physical dimensions / weight
Moderate — weight usually between 7-15 kg, housing robust (metal/reinforced plastic parts)
Functional features & benefits
Faster charging capacity : at 22 kW the car charges significantly faster than at 7-11 kW, provided the car has an AC onboard charger that supports this.
Using multiple phases ensures better balance in the connection, potentially lower load per phase and reduced cable and house connection problems.
Smart management system : With APP/WiFi/OCPP support, the user can monitor charging status, schedule charging times, set power, and possibly connect to solar power or battery storage.
Safety & reliability : all important safety mechanisms are present to limit risks (short circuit, leakage, overheating, etc.).
Outdoor installation possible : with sufficient IP protection it can be used outdoors or in less than climatically perfect conditions.
Future-proof : suitable for users investing in more charging power now, or homes with three-phase electricity, which also allows for future EVs or higher charging speeds.
