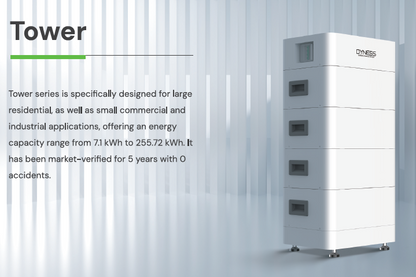

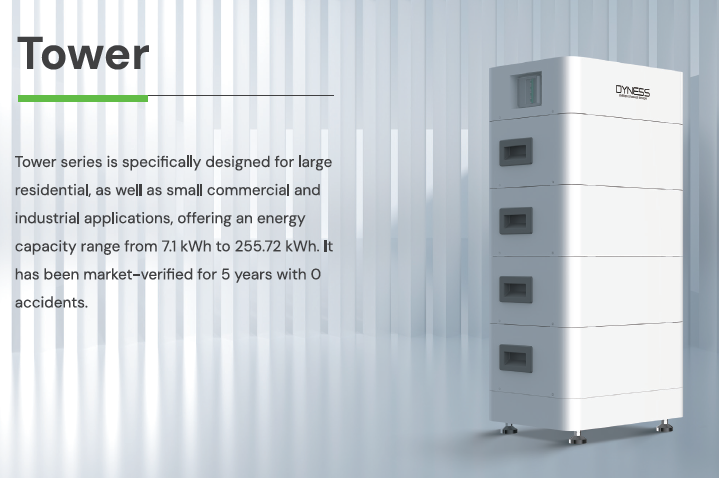

DYNESS HV Tower SET compleet (incl.BDU)

The Dyness Tower T7 is a powerful, modular home battery with a capacity of 7.1 kWh , designed for both residential and commercial use. This battery is ideal for storing solar energy, optimizing energy consumption, and providing backup power during power outages.

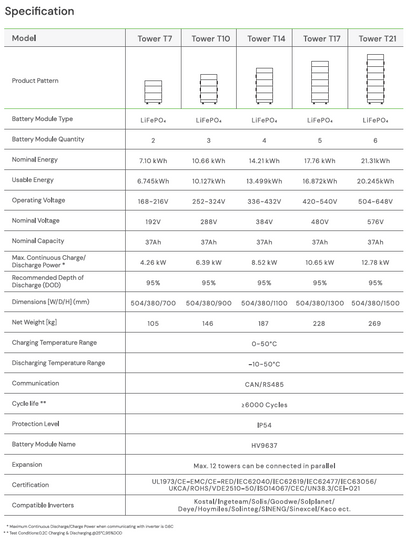

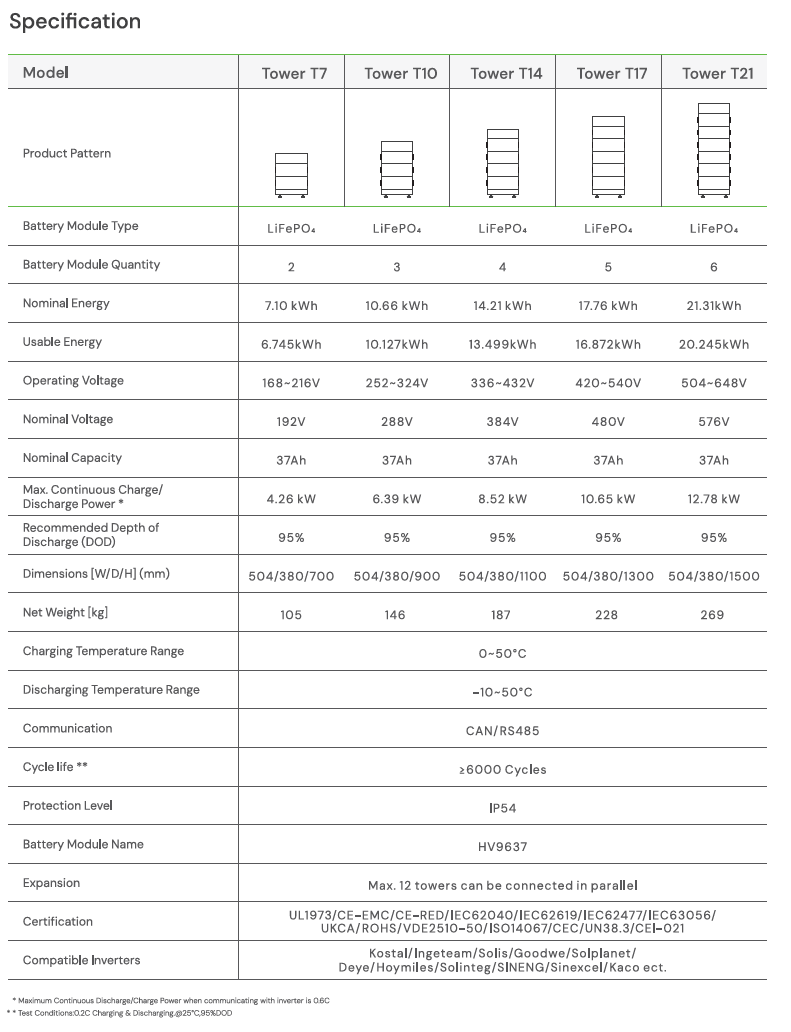

Key Specifications

• Capacity : 7.1 kWh (usable energy: 6.74 kWh)

• Battery technology : Lithium iron phosphate (LiFePO₄)

• Nominal voltage : 192 V

• Maximum charging/discharging power : 4.26 kW

• Charge/discharge temperature : 0 to 50 °C / -10 to 50 °C

• Protection degree : IP54 (protection against dust and water)

• Lifespan : More than 6000 charging cycles

• Dimensions : 700 × 504 × 380 mm

• Weight : 105 kg

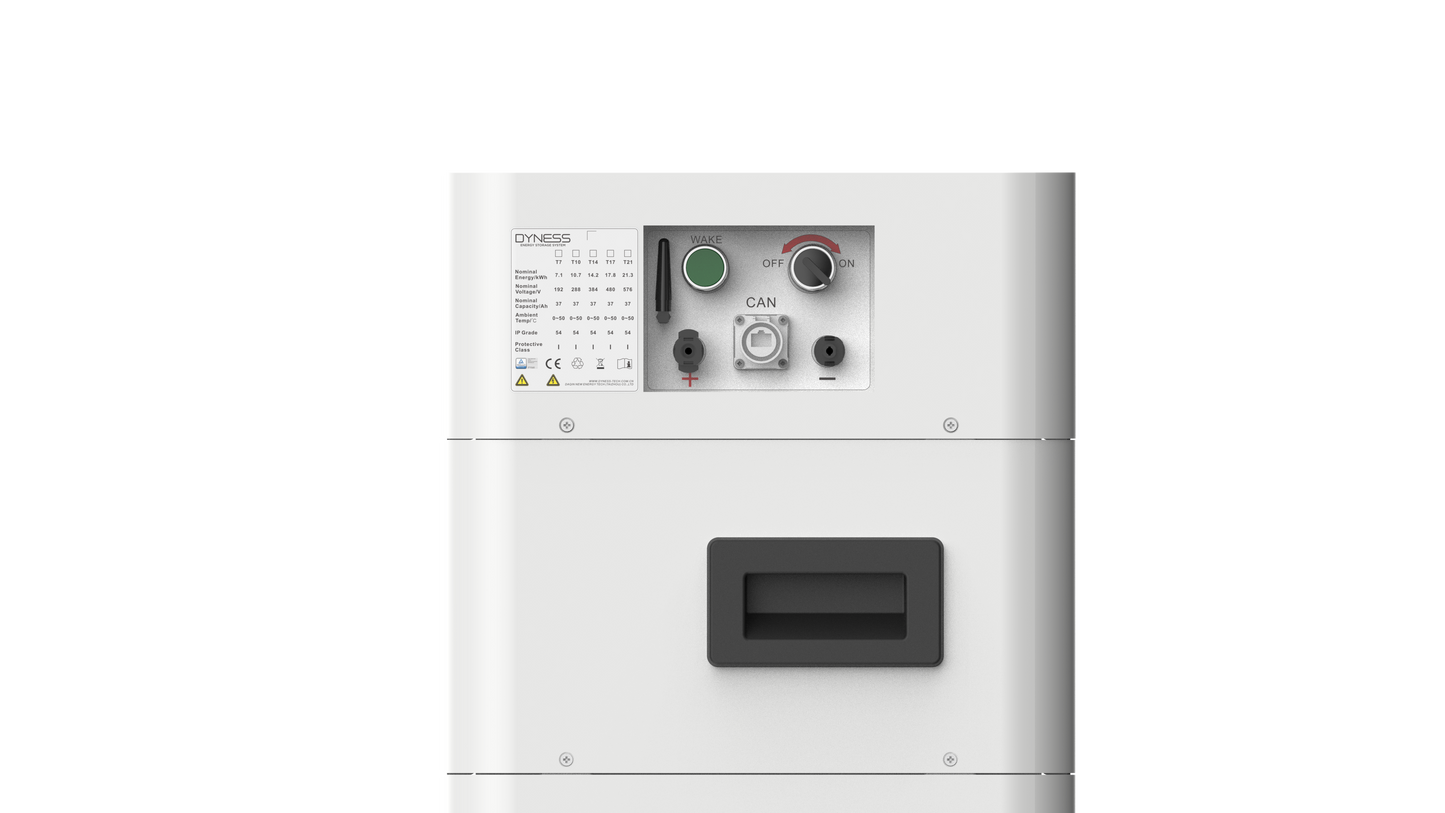

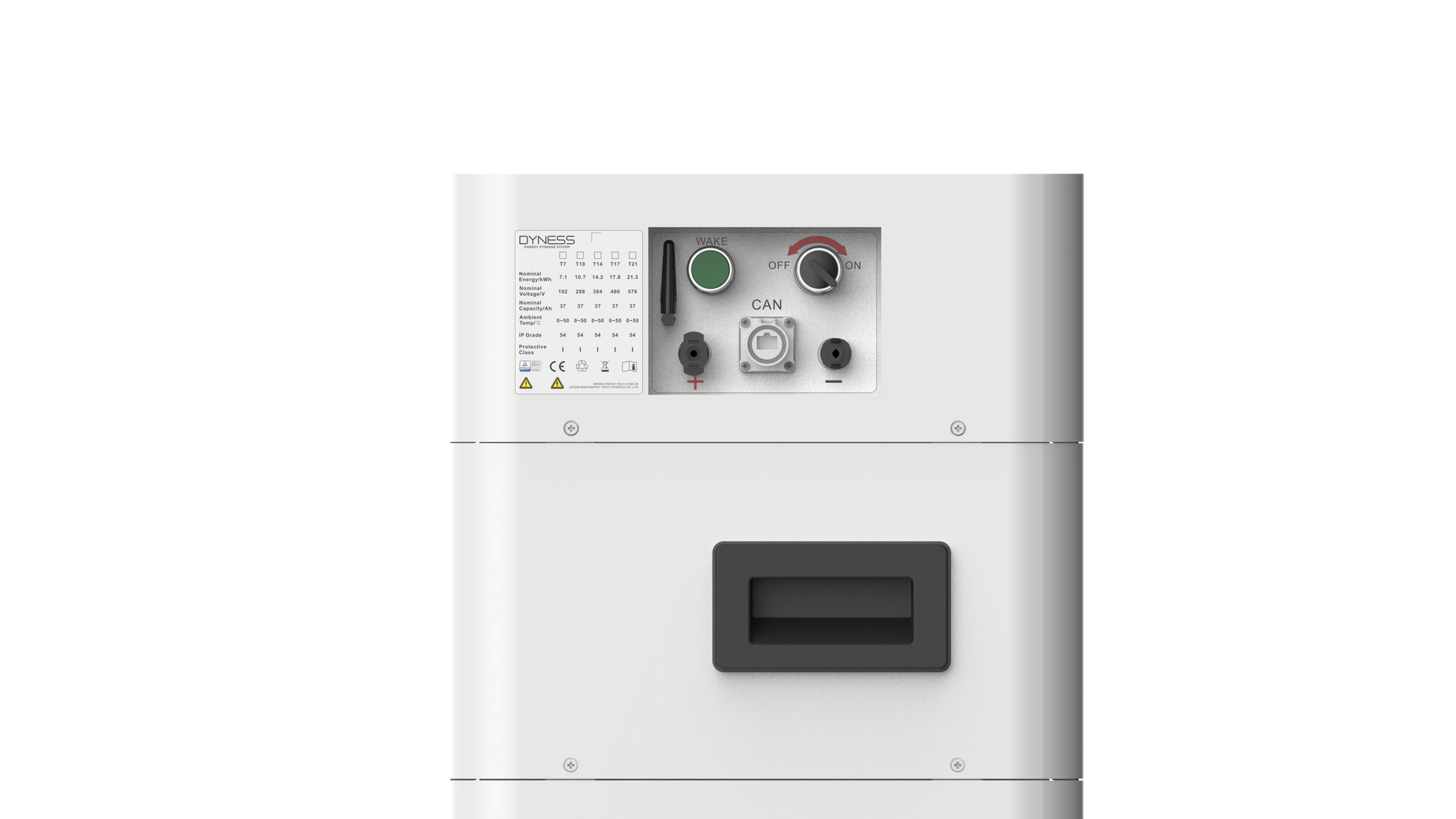

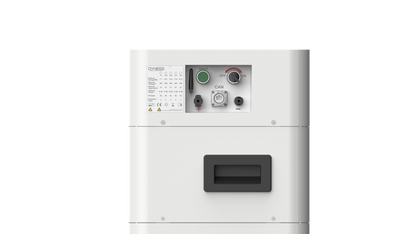

• Communication protocols : CAN, RS485, RS232

• Warranty : 10 years

Features and Benefits

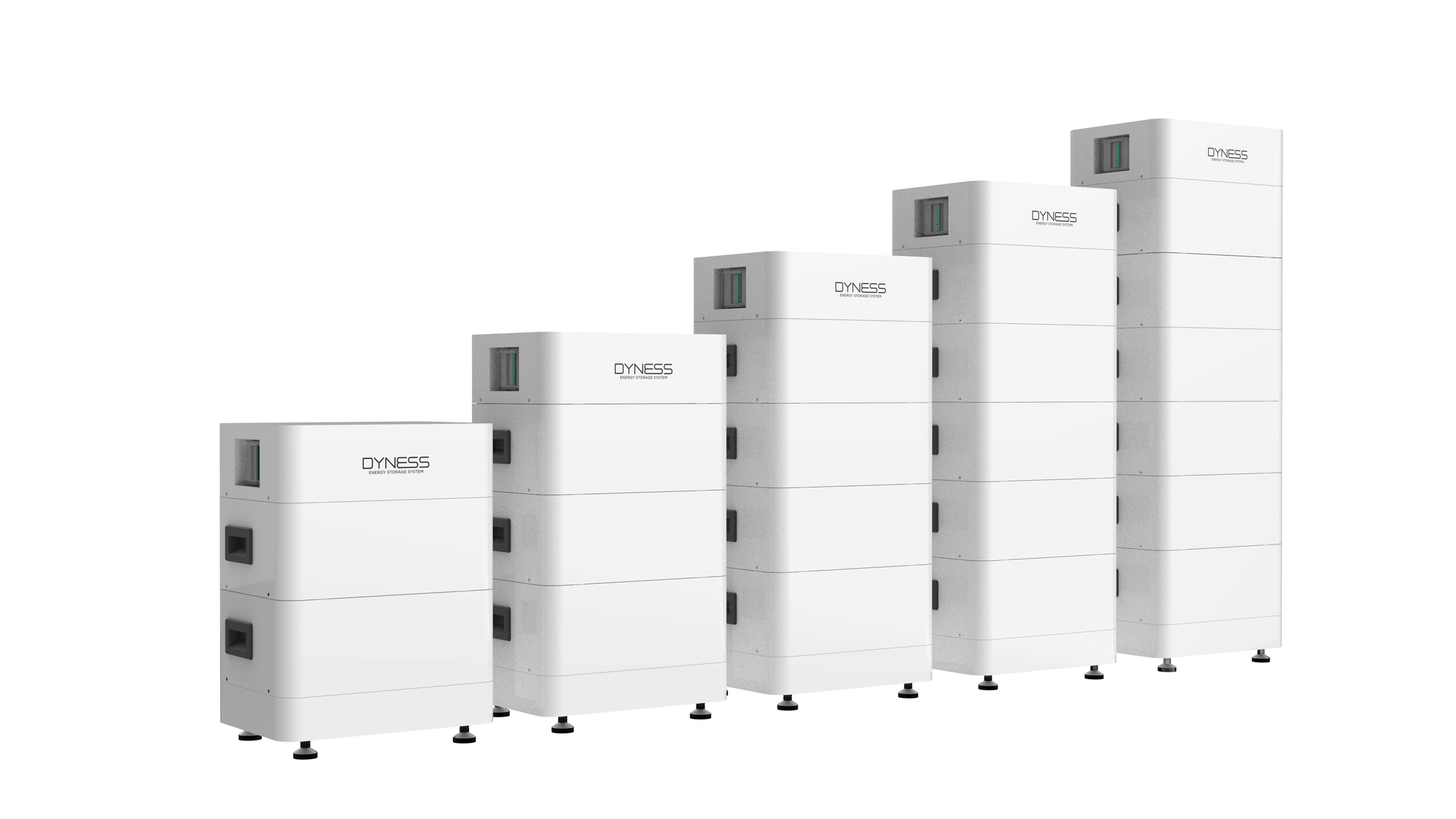

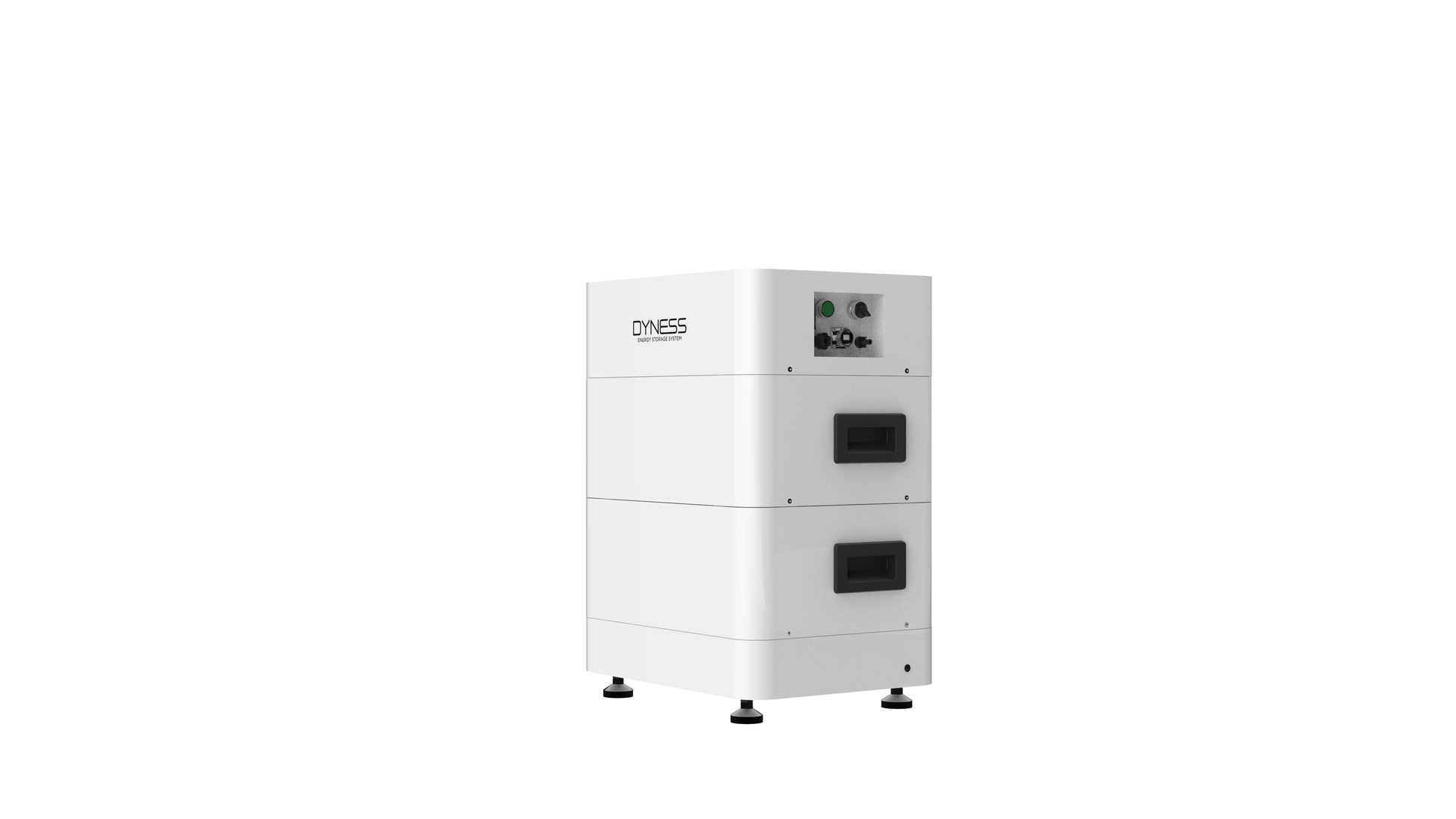

• Modular and stackable design : The Tower T7 can be expanded to a maximum capacity of 21.31 kWh by connecting multiple units, providing flexibility and scalability.

• High Efficiency : With a 95% depth of discharge (DoD) and 95% efficiency, the T7 provides an excellent energy storage solution.

• Safety and Certification : The battery complies with international standards such as IEC 62619, UL 1973 and CE, and is certified for use in different regions.

• Compatibility : The T7 is suitable for use with various inverters, including the Kostal Plenticore Plus G2 & G3 series.

• Smart Monitoring : Thanks to WiFi connectivity, users can remotely monitor battery status and perform firmware updates via a mobile app or web browser.

Applications

• Solar energy systems : Storage of excess solar energy for later use, maximizing self-consumption.

• Backup power supply : Provides reliable power during power outages, essential for homes and businesses.

• Smart energy management : Optimizes energy consumption by avoiding peaks and using stored energy during off-peak hours.
